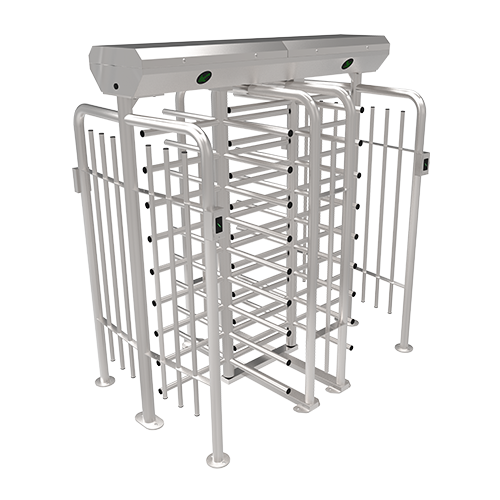

Full Height Turnstile
A Full Height Turnstile is a type of physical security gate designed to control pedestrian access and ensure only authorized individuals can pass through. It resembles a revolving door and usually spans from floor to ceiling, making it much more secure than waist-high turnstiles.
Key Features:
-
High Security: Prevents tailgating and unauthorized access.
-
Durable Construction: Usually made from stainless steel for long-term use.
-
Bi-directional Operation: Can allow entry and exit both ways.
-
Access Control Integration: Works with RFID, biometric, or card-based systems.
-
Suitable for Indoor & Outdoor Use.
Common Applications:
-
Industrial facilities
-
Stadiums
-
Airports
-
Construction sites
-
High-security government or corporate buildings
Types:
-
Single Lane Full Height Turnstile
-
Double Lane Full Height Turnstile
-
Motorized / Automatic Turnstile
-
Manual Turnstile
Key Specifications
| Parameter | Details |
|---|---|
| Power Requirements | AC110V / 220V, 50 / 60Hz |
| Working Temperature | -28°C to 60°C |
| Working Humidity | 0% to 95% |
| Working Environment | Indoor / Outdoor |
| Speed of Throughput | RFID: up to 20 persons/min Fingerprint: up to 15 persons/min |
| Lane Width | 580 mm |
| Footprint | 2018 mm x 1324 mm |
| Overall Dimensions | 2018 mm (L) × 1324 mm (W) × 2220 mm (H) |
| Net Weight | Turnstile: 161.5 kg Cabinet: 291.5 kg |
| Material (Cabinet) | SUS304 Stainless Steel |
| Material (Barrier) | SUS304 (Optional: SUS316) |
| Barrier Movement | Rotating |
| LED Indicator | Supported |
| Emergency Mode | Supported |
| Security Level | High |
| MCBF (Mean Cycles Between Failure) | 1 Million Cycles |
| Ingress Protection | IP54 |
| Warranty | 1 Year |
Packaging Dimensions
| Component | Dimensions (L × W × H) |
|---|---|
| Turnstile | 2120 mm × 590 mm × 440 mm |
| Cabinet | 1670 mm × 1510 mm × 2180 mm |
