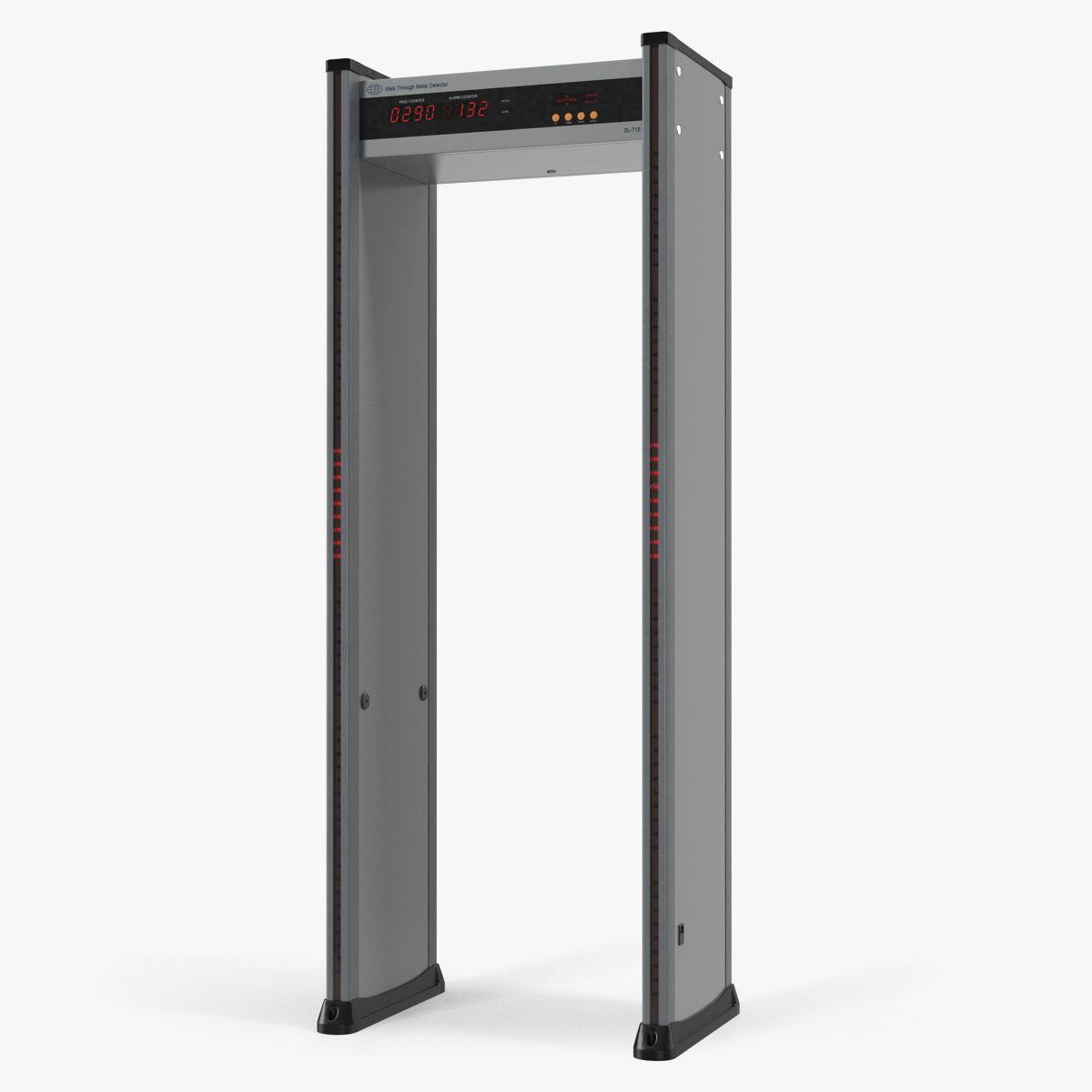

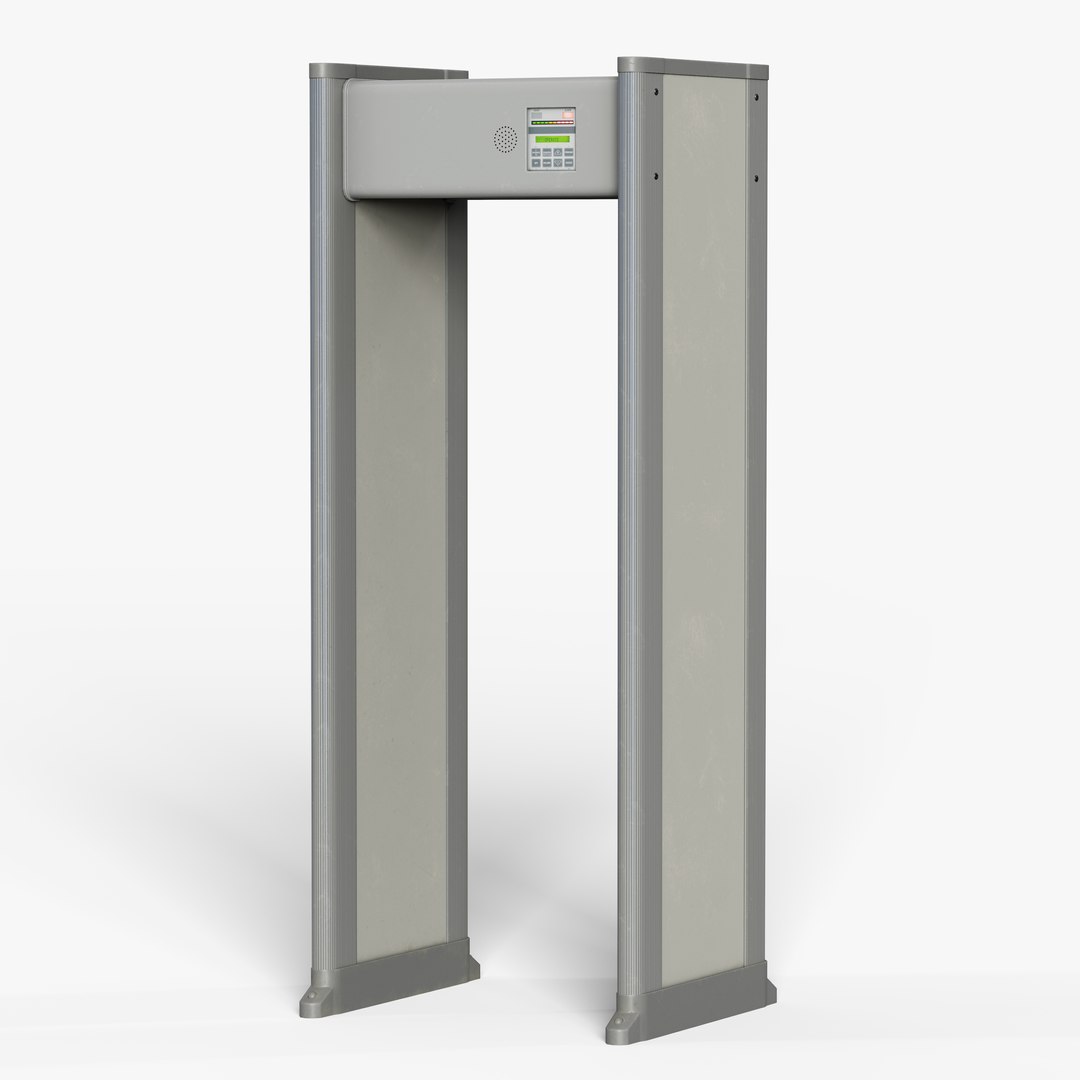

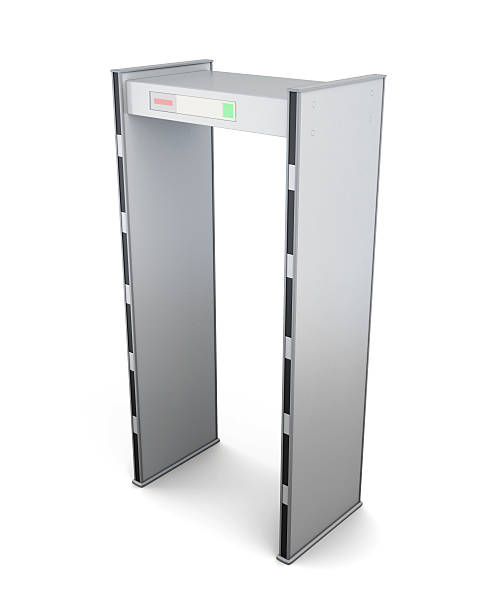

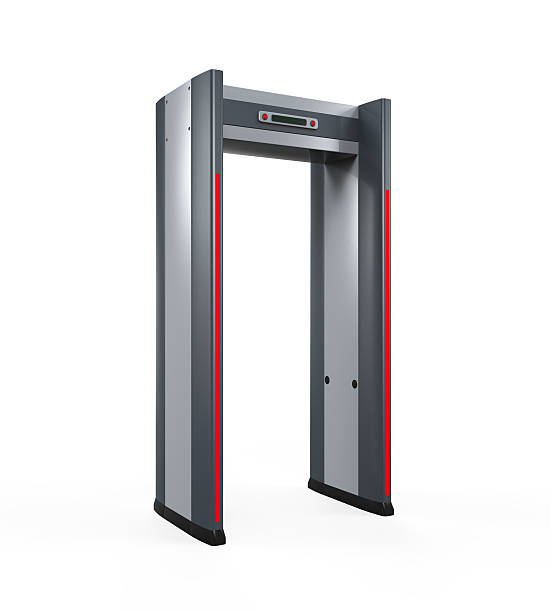

Walk Through Metal Detector
The AS-MD18Z is a high-performance 18-zone walk-through metal detector, designed for enhanced security screening in indoor environments. Equipped with a 7″ color LCD, integrated 2MP camera, and advanced detection features, it ensures accurate and efficient threat detection with detailed event logging.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AS-MD18Z |
| Display | 7″ LCD Color Screen (800×480) |
| Physical Keypad | 5 Keys |
| Detection Zones | 18 Zones |
| Sensitivity | 500 Adjustable Levels |
| Detection Modes | Auto / Infrared (default: Infrared) |
| Maximum Detection Distance | 20 mm to 2000 mm |
| Throughput | 40 Persons per Minute |
| Detected Contrabands | Ferrous and Non-Ferrous Metal Weapons |
Camera & Monitoring
| Feature | Details |
|---|---|
| Camera | Embedded 2MP Monocular Camera |
| Photo Resolution | 240 × 320 |
| Record Storage | >100,000 Records |
| Overhead Control Unit | Live Video, Photo (linked to 6 alarms), Alarm Count, Pass Count, Channel, Date & Time, Battery Indicator |
Alarm & Indicators
Alarm Types | 16 Selectable Alarm Tones
Volume Control | 0 to 100 (Default: 80)
Visual Alerts | 2 LED Strips (Left & Right Panels, Red LEDs)
Alarm Indicator | Steady Red = Metal Contraband Detected
Power & Performance
Power Supply | AC 100V – 240V (DC12V / 3A)
Input Voltage | DC12V
Operating Current | 1.5A
Power Consumption | 18W
Operation | 24/7 Continuous Operation Supported
Environmental Conditions
Operating Temperature | -20°C to 55°C
Storage Temperature | -25°C to 60°C
Humidity | <95% RH (non-condensing)
Operating Frequency | 5.7KHz to 9.6KHz
Application | Indoor Use Only
Dimensions & Packaging
Detector Dimensions (L×W×H) | 2226 × 845 × 580 mm
Lane Size (L×W×H) | 2000 × 710 × 498 mm
Packaging Size (L×W×H) | 2280 × 347 × 660 mm
Net / Gross Weight | 47 kg / 52 kg
Additional Info
Enclosure Material | Flame Retardant ABS, MDF, PVC
Certifications | CE, FCC, ISO9001
Ingress Protection | Not rated for waterproof/dustproof
Self-Diagnosis | Supported
Supported Software | ZKBio SIS / ZK Metal Detector
Included Accessories | Remote Control
Ideal For:
-
Corporate Offices
-
Airports & Transit Hubs
-
Government Buildings
-
Exhibition Centers
-
Schools & Event Venues
